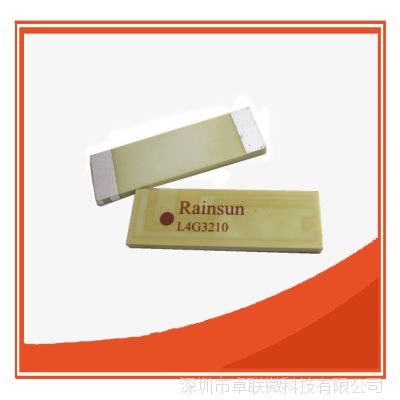

| 品牌：RAINSUN | 货号：PFL4G3210 | 型号：PF-L4G3210 |
| 增益：3DBi | 频率范围：690-960/1700-2700MHZMHz | 输出阻抗：20Ω |
| 工作电压：3V | 是否跨境货源：否 |
---------------------------------------------------------------------------------------
授权代理Rainsun陶瓷天线全系列 | |||||||
蓝牙、WiFi、2.4G、2.4/5.8G双频天线 | |||||||
Items | AN3216 | AN2051 | AN6520 | AN9520 | AN1003 | PF1004 | |
Size(mm) | 3.2*1.6*1.04 | 5.05*2.0*1.07 | 6.5*2.2*1.0 | 9.5*2.1*1.0 | 10.3*3.0*1.6 | 10.0*4.0*3.0 | |
Center Frequency | 2.45GHZ | 2.45GHZ | 2.45GHZ | 2.45GHZ | 2.45GHZ&5~6GHZ | 2.45GHZ&5~6GHZ | |
Peak Gain | 0.5dBi | 0.5dBi | 0.5dBi | 1.5dBi | 1.0dBi | 3.0dBi | |
VSWR | 2.0(Max) | 2.0(Max) | 2.0(Max) | 2.0(Max) | 2.0(Max) | 2.0(Max) | |
Input Impedance | 50ohm | 50ohm | 50ohm | 50ohm | 50ohm | 50ohm | |
Power Handing | 1W(Max) | 2W(Max) | 3W(Max) | 3W(Max) | 3W(MAX) | 5W(Max) | |
Band Width | 110MHZ | 110MHZ | 200MHZ | 200MHZ | 2.45GHZ:70MHZ 5~6GHZ:500HZ | 150MHZ | |
備註 | 适用于蓝牙、近距离WiFi及2.4G RF | 双频适用 | |||||
可定制其他特殊频率天线 | |||||||
Items | AN1603-433/868/916 | GPS1003 | MD1506 | MD1705 | |||
Size(mm) | 16.0*3.1*1.65 | 10.0*3.0*1.47 | 15.0*6.5*1.63mm | 17.0*5.0*1.63mm | |||
Center Frequency | 433M/480M /868M/916M | 1575MHZ | 820~1950MHz | 800-2100MHZ | |||
Peak Gain | 0.5dBi | 4.3dBi | -0.3dBi | 1dBi | |||
VSWR | 2.0(Max) | 1.5(Max) | 2.5(Max) | 2.5(Max) | |||
Input Impedance | 50ohm | 50ohm | 50 ohm | 50 ohm | |||
Power Handing | 3W(Max) | 3W(MAX) | 5W(MAX) | 5W(MAX) | |||
Band Width | 8MHZ | 150MHZ | 1130 MHZ | 1300 MHZ | |||
備註 | 315M/480M等特殊頻率天線定做 | GPS1004同步生產 | CDMA/PCS:825‐894/1820‐1990 MHz | 車載通訊應用 | |||
|
| CDMA/PCS:825‐894/1820‐1990 MHz |
| ||||
配 套 提 供 | 无线RF芯片 | CC2530F256RHAR CC2540F256RHAR CC2541RHAR DA14580 NRF51822-QFAA NRF51822-CEAA PL1167 ESP8266 |
陶瓷天线 | AN3216 AN2051 AN6520 AN9520 AN1003 | |
巴伦滤波器 | BAL-NRF01D3 BAL-NRF02D3 BALF-NRF01D3 | |
晶振 | 32.768KHZ 32MHZ |
